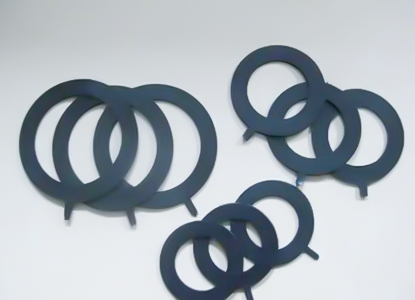

HP series high-performance solid silicone owns characteristics of excellent toughness, aging resistance and insulation, therefore it can achieve good sealing, cushioning and shock absorption and filling. The black solid silicone rubber can reduce light loss, and can also be used for waterproof and friction resistance. The product can be used for a long time at -60~200°C, and is an ideal shock absorption, filling or sealing material in harsh environments.
Basic performance | Typical value | Testing standards |
| Base material/Thickness（mm） | PET/0.025 | / |
| Color | Gray | Visual |
| Thickness（mm） Tolerance％ | 0.1~12.7 ±5% | ASTM D374/D374M |
| Density（g/cm3） | 1.3±0.1 | ASTM D792 |
| Hardness（ShoreA） | 55±5 | ASTM D2240 |
| Tensile Strength（MPa） | 5 | ASTM D412 |
| Elongation at break（％） | 300 | ASTM D412 |
| Breakdown voltage（kV） | >4 | ASTM DI49 |
| Volume Resistivity（Ω·cm） | 1014 | ASTM D257 |
| Temperature（℃） | -40~200 | SAE J-2236 |
| RoHS Compliant | YES |
