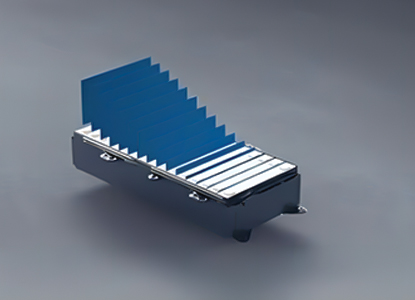

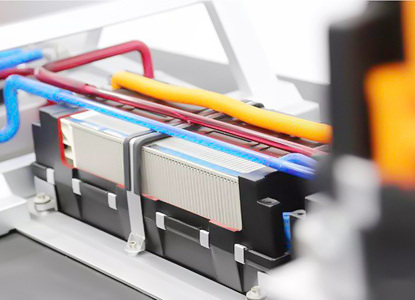

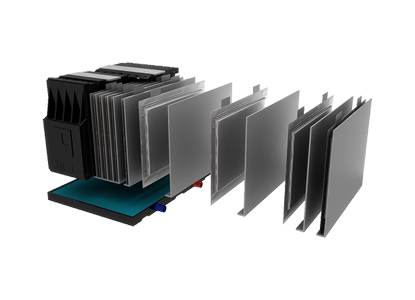

PS-75-G is a silicone insulation sheet with an embedded glass-fiber core: 75 Shore A hardness delivers high mechanical strength, while the fiber layer forms an effective thermal barrier — a temperature gradient of ≥80°C (≥144°F) under 500°C (932°F) heat at 0.8 MPa for 5 minutes, with thermal conductivity of just 0.30 W/(m·K). Stable from −50°C to 200°C (−58°F to 392°F), wear-resistant, and easy to position with PSA backing, it is widely used for cell-to-cell insulation, thermal insulation systems, and hot-surface isolation in EV, rolling stock, and industrial electronics.
Basic performance | Testing standards | Typical value |
| Model | / | PS-75-G |
Color | Visualization | White |
Thickness/mm Tolerance | ASTM D374/D374M / | 0.3~2 ±10% |
| Density/g·cm-3 | / | 1.26 |
| Hardness(Shore A) | ASTM D2240 | 75 |
| Compression-Rebound Stress /MPa (25%) | ASTM D1056 | 1.8 |
| Tensile strength /MPa (Minimum) | ASTM D412 | 5.5 |
| Thermal insulation effect(℃) | Internal(500℃,0.8MPa,5min) | ≥80 |
| Thermal Conductivity/W·m-1·K-1 | ASTM E1461 | 0.30 |
| Volume Resistivity/Ω·cm | ASTM D 257 | >1013 |
| Electrical Strength ROHS(kV/mm) | ASTM D149 | >10 |
| Recommended operating temperature/℃ | Internal | -50~200 |
