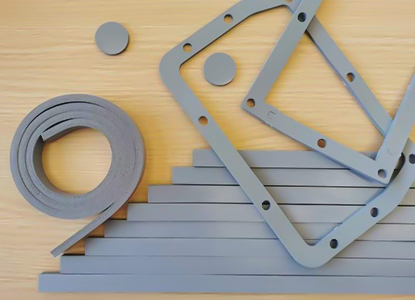

Ultra-Thin Flame-Retardant Silicone Foam

Ultra-Thin Flame-Retardant Silicone Foam

Ultra-thin flame-retardant silicone foam pushes the industry-standard 0.8 mm gauge down to 0.6 mm while still meeting UL 94 V-0 — for sealing and cushioning where every millimeter counts.

Taiya ultra-thin foam compresses the conventional 0.8 mm industry thickness to 0.6 mm, freeing critical space in compact assemblies — while still achieving UL 94 V-0 and HF-1 ratings, proving thin doesn't mean less safe. Mechanical and aging performance stay strong: 50 kPa at 25% compression, compression set under 5%, and improved resistance to set and stress relaxation for long-term reliability. Low closure force and soft conformability absorb tolerances and keep seals intact — the foam of choice for industrial, EV, and energy-storage sealing and support pads.

Product Advantages

  • Extremely thin and light
    Extremely thin and light

    0.6mm thickness provides more freedom and possibilities for product design

  • Light and flame retardant
    Light and flame retardant

    UL94 V-0 class, lightweight and safe

  • Excellent rebound
    Excellent rebound

    Excellent resistance to compressive deformation, resilience and stress relaxation

  • Low closing force
    Low closing force

    The housing should be closed with low closing force to protect the device from environmental effects

  • Soft fit
    Soft fit

    Good sealing effect, make up for tolerances, ensure sealing performance

  • Strong weather resistance
    Strong weather resistance

    Stable performance in extreme environments

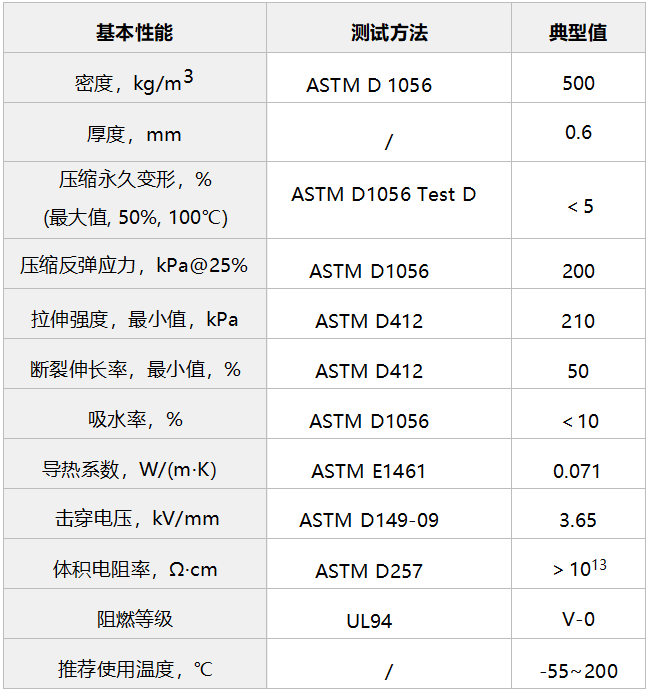

Performance Parameters

Properties

Test Method

Typical Value

Product

/

TZ-300

Color

Visual

Gray, Black

Density (kg/m3)

ASTM D1056

350

Thickness (mm)

Tolerance (%)

ASTM D374/D374M

/

0.8~25.4

±10

Compression Set (%)

(max, 50%, 100℃, 22h)

ASTM D1056

<5

25% Compression Force Deflection (kPa)

ASTM D1056

50

Tensile Strength (kPa, min)

ASTM D412

280

Elongation at Break (%, min)

ASTM D412

90

Water Absorption (%)

ASTM D1056

<10

Thermal Conductivity (W/(m·K))

ASTM E1461

0.07

Dielectric Strength (kV/mm)

ASTM D149

6.5

Volume Resistivity (Ω•cm)

ASTM D257

>1013

Flame Resistance

UL 94

V-0, HF-1

Recommended Temperature (℃)

SAE J-2236

-55~200

Note: The above data is the average of the overall test, and we can be contacted for more product information.

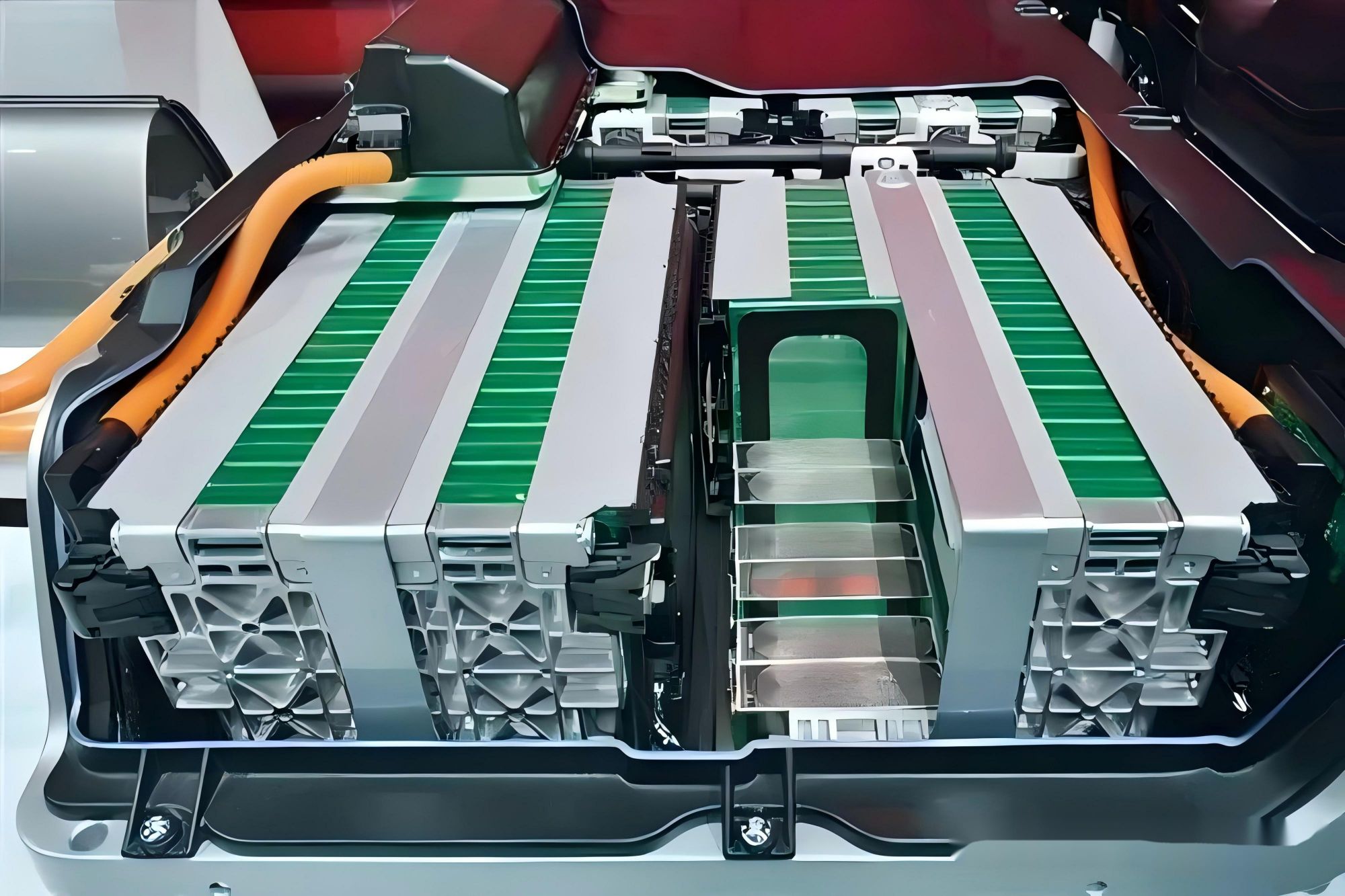

Application Scenarios
