 Home > Products > Silicone Foam > HI Thermal-Insulation Silicone Foam

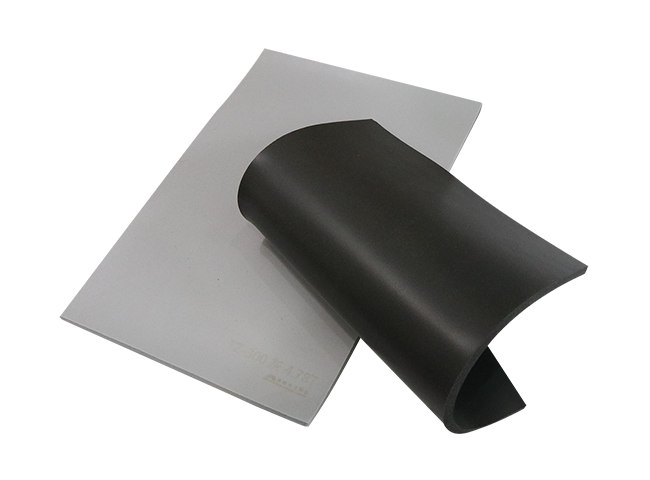

HI Thermal-Insulation Silicone Foam

HI Thermal-Insulation Silicone Foam

HI-series thermal-insulation silicone foam delivers an ultra-low thermal conductivity of 0.07 W/(m·K) that holds steady at temperatures up to 500°C (932°F), engineered for thermal barriers in battery packs, electric motors, and other high-heat assemblies.

At room temperature, HI-series foam offers the full benefits of silicone rubber: excellent resilience, low thermal conductivity, weatherability, and long-term stability. Even at 500°C (932°F) it stays rubbery and structurally intact, with thermal conductivity holding near 0.07 W/(m·K) as temperature rises — insulation performance never drops off. With a UL 94 V-0 rating and compliant combustion smoke, it suits battery-pack thermal fillers, cell-to-cell thermal barriers, and other high-temperature sealing applications.

Product Advantages

  • Strong environmental adaptability
    Strong environmental adaptability

    Stable performance can still be maintained in extreme environments, with extremely high weather resistance and durability

  • High flame retardancy and safety
    High flame retardancy and safety

    UL94 V-0 flame retardant, the smoke after combustion meets strict requirements for smoke, fire, and toxicity

  • Beyond conventional insulation performance
    Beyond conventional insulation performance

    From room temperature to 500 ℃, its thermal conductivity remains around 0.08 W/(m · K)

  • high temperature stability
    high temperature stability

    Maintaining good rubber state and resilience at temperatures as high as 500 ℃

Performance Parameters

Properties

Test Method

Typical Value

Product

/

HI-370

HI-420

HI-520

HI-520C

Color

Visual

Black

Black

Black

Black

Density (kg/m3)

ASTM D1056

370

420

520

520

Thickness (mm)

Tolerance (%)

ASTM D374/D374M

/

0.8~12.7

±10

0.8~12.7

±10

0.8~12.7

±10

0.8~12.7

±10

Compression Set (%)

(max, 50%, 100℃, 22h)

ASTM D1056

<5

<5

<5

<5

25% Compression Force Deflection (kPa)

ASTM D1056

80

120

220

220

Tensile Strength (kPa)

ASTM D412

350

450

650

650

Elongation at Break (%)

ASTM D412

85

90

100

100

Tear Strength (N/mm)

ASTM D624

1.4

1.8

2.8

2.8

Water Absorption (%)

Internal

<3

<3

<3

<3

Thermal Conductivity (W/(m·K))

ASTM E1461

0.07

0.07

0.07

0.07

Volume Resistivity (Ω•cm)

ASTM D257

>1014

>1014

>1014

>1014

Thermal Insulation - Temperature Difference (℃)

Internal

250

270

290

290

Flame Resistance

UL 94

V-0

V-0

V-0

V-0

Recommended Temperature (℃)SAE J-2236-55~200-55~200-55~200-55~200

Note: The above data is the average of the overall test, and we can be contacted for more product information.

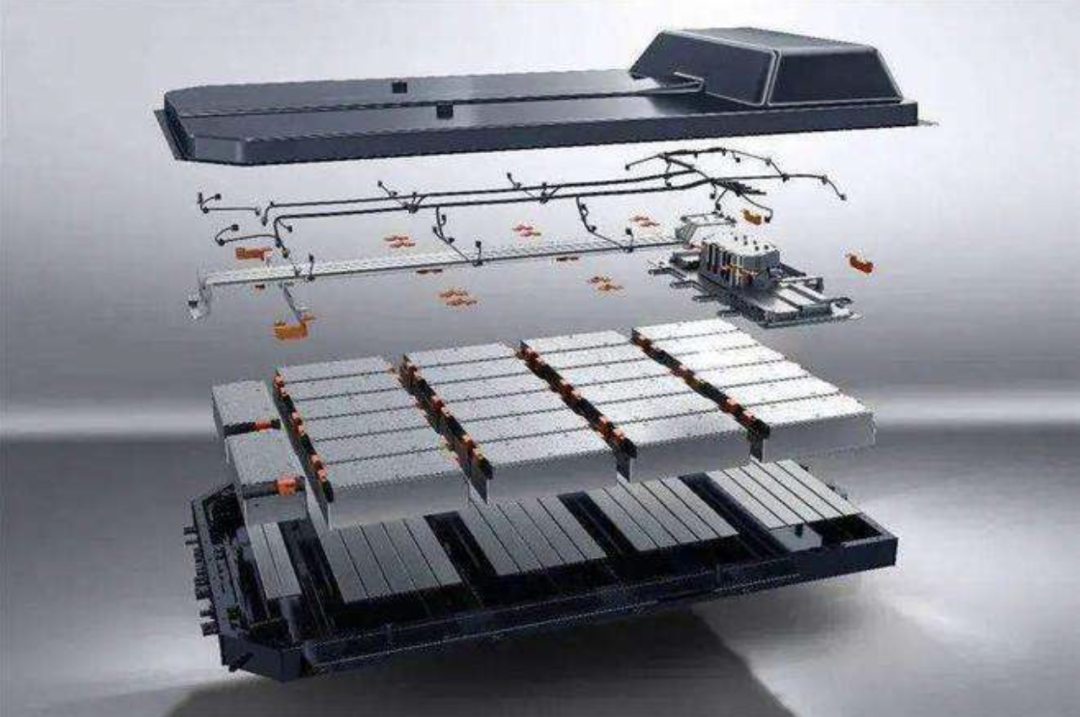

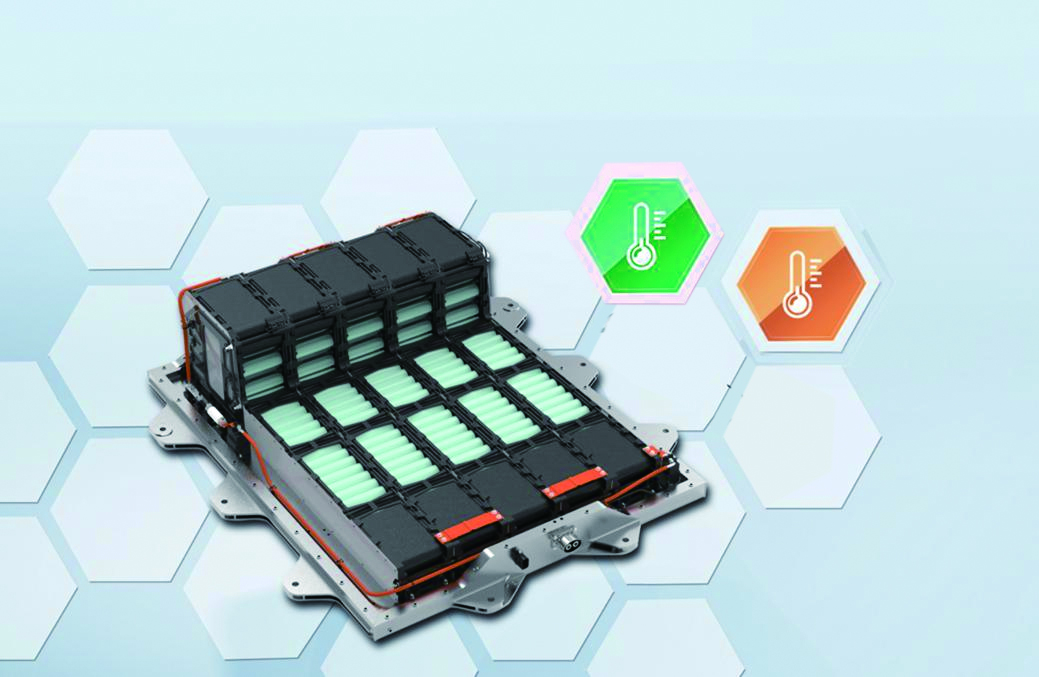

Application Scenarios

Technical Data

  • TDS
  • MSDS
  • Product Selection
  • Solution
  • Video
  • Certification
  • HI-370 Thermal-Insulation Silicone Foam TDS
    Lightweight insulation silicone foam370 kg/m³, holding 0.07 W/(m·K) steady from ambient to 500°C (932°F), UL 94 V-0. (Link broken — verify density)
  • HI-420 Thermal-Insulation Silicone Foam TDS
    Insulation silicone foam, 420 kg/m³ / 120 kPa — stays rubbery at 500°C (932°F) with conductivity holding at 0.07 W/(m·K) — battery and motor thermal barriers.
  • HI-520 Thermal-Insulation Silicone Foam TDS
    Insulation silicone foam, 520 kg/m³ / 220 kPa, the firmest HI grade — 0.07 W/(m·K) steady to 500°C (932°F) for load-bearing thermal barriers.
  • HI-520C Thermal-Insulation Silicone Foam TDS
    Insulation silicone foam, 520 kg/m³ / 220 kPa, the firmest HI grade — 0.07 W/(m·K) steady to 500°C (932°F) for load-bearing thermal barriers.
  • HI-370 Thermal-Insulation Silicone Foam MSDS
    Safety Data Sheet for HI-370 thermal-insulation silicone foam — GHS 16-section format, not classified as hazardous, no health or environmental hazards, non-flammable. For compliance filing, customs clearance, and customer audits.
  • HI-420 Thermal-Insulation Silicone Foam MSDS
    Safety Data Sheet for HI-420 thermal-insulation silicone foam — GHS 16-section format, not classified as hazardous, no health or environmental hazards, non-flammable. For compliance filing, customs clearance, and customer audits.
  • HI-520 Thermal-Insulation Silicone Foam MSDS
    Safety Data Sheet for HI-520 thermal-insulation silicone foam — GHS 16-section format, not classified as hazardous, no health or environmental hazards, non-flammable. For compliance filing, customs clearance, and customer audits.
  • HI-520C Thermal-Insulation Silicone Foam MSDS
    Safety Data Sheet for HI-520C thermal-insulation silicone foam (Apr 2025 revision) — GHS 16-section format, not classified as hazardous, no health or environmental hazards, non-flammable. For compliance filing, customs clearance, and customer audits.
  • UL Yellow Card (File No. E499089)
    UL Yellow Card File No. E499089 (Category QMFZ2, Plastic Parts) Holder: Guangmai Electronic Technology (Wholly-owned/Affiliate of Taiya) Scope of Covered Products & Grade List: Covers the full line of Taiya silicone foam and solid silicone products, for flame rating verification and factory audit documentation by European and American customers.
